Grafikkort
| Kerne | |
|---|---|
| Navn | Navi 48 |
| Fabrikant | TSMC |
| Procesnode | 4 nm |
| Transistorer | 53900 million |
| Chipstørrelse | 357.0 mm² |
| Densitet | 151.0 /mm² |
| GPU-kernekonfiguration | |
|---|---|
| Kerner | 3584 |
| TMU | 224 |
| ROP | 128 |
| RT-kerner | 56 |
| Hukommelse | |
|---|---|
| Teknologi | GDDR6 |
| Størrelse | 16 GB |
| Bus | 256 bit |
| Infinity Cache | 64 MB |
| Båndbredde | 644.6 GB/s |
| Hastighed | 20.1 Gbps |
| Klokkehastigheder | |
|---|---|
| Basisklokke | 1330 MHz |
| Spilklokke | 2120 MHz 2070 MHz |
| Boost-klokke | 2590 MHz 2520 MHz |
| Hukommelsesklokke | 2518 MHz |
| Strøm | |
|---|---|
| 8-pin | 2 |
| TDP | 220 w |
| Anbefalet strømforsyning | 650 w |

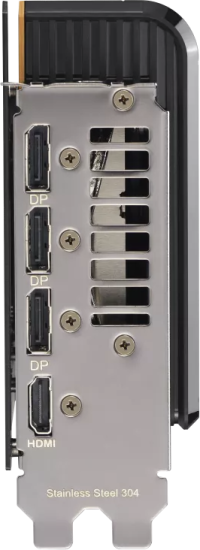

| Skærmudgang | |
|---|---|
| DisplayPort | 3 2.1a |
| HDMI | 1 2.1b |
| HDCP | 2.3 |
| Opløsning | 7680 x 4320 |
| Dimensioner | |
|---|---|
| Slot | 2.5 |
| Længde | 304 mm |
| Højde | 126 mm |
| Bredde | 50 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
 4.490 kr. | 2520 MHz | 2.6 | 290 mm | 123 mm | 51 mm | |
| 5.590 kr. | 2700 MHz +7.1% | 2.9 | 298 mm | 131 mm | 58 mm | |
| 5.314 kr. | 2590 MHz +2.8% | 2.5 | 304 mm | 126 mm | 50 mm | |
| 2650 MHz +5.2% | 3.2 | 330 mm | 140 mm | 62.5 mm | ||
| 4.990 kr. | 2590 MHz +2.8% | 2.5 | 312 mm | 130 mm | 50 mm | |
| 5.096 kr. | 2520 MHz | 2.5 | 288 mm | 132 mm | 50 mm | |
 4.904 kr.5.109 kr. | 2700 MHz +7.1% | 2.5 | 288 mm | 132 mm | 50 mm | |
| 4.390 kr. | 2520 MHz | 2.1 | 289 mm | 111 mm | 41 mm | |
| 2700 MHz +7.1% | 3.5 | 340 mm | 132 mm | 69 mm | ||
| 5.690 kr. | 2590 MHz +2.8% | 2.1 | 327 mm | 128 mm | 41 mm | |
| 5.552 kr. | 2700 MHz +7.1% | 3.4 | 330.8 mm | 128.5 mm | 65.7 mm | |
| 5.126 kr. | 2700 MHz +7.1% | 3.1 | 320 mm | 120.3 mm | 61.6 mm | |
| 4.767 kr. | 2520 MHz | 2.6 | 280 mm | 120.3 mm | 51.5 mm | |
| 5.139 kr. | 2700 MHz +7.1% | 3.4 | 350 mm | 140 mm | 67 mm | |
| 4.979 kr. | 2700 MHz +7.1% | 3.3 | 325 mm | 150 mm | 65 mm | |
| 2700 MHz +7.1% | 3 | 290 mm | 150 mm | 59 mm | ||
| 2700 MHz +7.1% | 3 | 290 mm | 150 mm | 59 mm | ||
| 4.938 kr. | 2700 MHz +7.1% | 3.3 | 325 mm | 150 mm | 65 mm | |
| 5.376 kr. | 2700 MHz +7.1% | 2.5 | ||||
| 5.167 kr. | 2700 MHz +7.1% | 2.5 | 295 mm | 120 mm | 49 mm | |
| 3100 MHz +23.0% | 3.6 | 360 mm | 155 mm | 72 mm | ||
| 2700 MHz +7.1% | 3.4 | 350 mm | 140 mm | 67 mm |
