Grafikkort
| Information | |
|---|---|
| Platform | Consumer |
| Arkitektur | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Forrige generation | GeForce RTX 30 |
| Næste generation | GeForce RTX 50 |
| Grænseflade | PCIe 4.0 x16 |
| Kerne | |
|---|---|
| Navn | AD104 |
| Fabrikant | TSMC |
| Procesnode | 5 nm |
| Transistorer | 35800 million |
| Chipstørrelse | 294.0 mm² |
| Densitet | 121.8 /mm² |
| GPU-kernekonfiguration | |
|---|---|
| Kerner | 7168 |
| TMU | 224 |
| ROP | 80 |
| Hukommelse | |
|---|---|
| Teknologi | GDDR6X |
| Størrelse | 12 GB |
| Bus | 192 bit |
| Båndbredde | 504.2 GB/s |
| Hastighed | 21.0 Gbps |
| Klokkehastigheder | |
|---|---|
| Basisklokke | 1980 MHz |
| Boost-klokke | 2565 MHz 2475 MHz |
| Hukommelsesklokke | 1313 MHz |
| Strøm | |
|---|---|
| 16-pin | 1 |
| TDP | 220 w |
| Anbefalet strømforsyning | 550 w |
| Skærmudgang | |
|---|---|

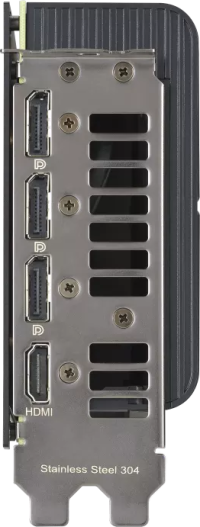

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1a |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 2.5 |
| Længde | 300 mm |
| Højde | 120 mm |
| Bredde | 50 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
| 2670 MHz +7.9% | 3.2 | 338.9 mm | 149.4 mm | 62.4 mm | ||
| 2505 MHz +1.2% | 3.2 | 338.9 mm | 149.4 mm | 62.4 mm | ||
| 2565 MHz +3.6% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2505 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2550 MHz +3.0% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2505 MHz +1.2% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2550 MHz +3.0% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2505 MHz +1.2% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2505 MHz +1.2% | 2.6 | 267 mm | 133.9 mm | 51.1 mm | ||
| 2550 MHz +3.0% | 2.6 | 267 mm | 133.9 mm | 51.1 mm | ||
| 2505 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2550 MHz +3.0% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +4.8% | 3.2 | 301 mm | 139 mm | 63 mm | ||
| 2505 MHz +1.2% | 3.2 | 301 mm | 139 mm | 63 mm | ||
| 2550 MHz +3.0% | 2.6 | 267 mm | 133.9 mm | 51.1 mm | ||
| 2505 MHz +1.2% | 2.6 | 267 mm | 133.9 mm | 51.1 mm | ||
| 2505 MHz +1.2% | 2.5 | 261 mm | 126 mm | 50 mm |
