Grafikkort
| Information | |
|---|---|
| Platform | Consumer |
| Arkitektur | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Forrige generation | GeForce RTX 30 |
| Næste generation | GeForce RTX 50 |
| Grænseflade | PCIe 4.0 x16 |
| Kerne | |
|---|---|
| Navn | AD104 |
| Fabrikant | TSMC |
| Procesnode | 5 nm |
| Transistorer | 35800 million |
| Chipstørrelse | 294.0 mm² |
| Densitet | 121.8 /mm² |
| Hukommelse | |
|---|---|
| Teknologi | GDDR6X |
| Størrelse | 16 GB |
| Bus | 192 bit |
| Klokkehastigheder | |
|---|---|
| Boost-klokke | 2640 MHz |
| Strøm | |
|---|---|
| 16-pin | 1 |
| TDP | 285 w |
| Anbefalet strømforsyning | 750 w |

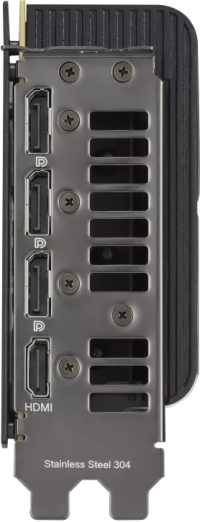

| Skærmudgang | |
|---|---|
| DisplayPort | 3 1.4a |
| HDMI | 1 2.1a |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 2.5 |
| Længde | 300 mm |
| Højde | 120 mm |
| Bredde | 50 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
| 2640 MHz | 3.2 | 336 mm | 150 mm | 63 mm | ||
| 2700 MHz +2.3% | 3.2 | 336 mm | 150 mm | 63 mm | ||
| 2640 MHz | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2655 MHz +0.6% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2640 MHz | 3.2 | 325.9 mm | 140.2 mm | 62.8 mm | ||
| 2670 MHz +1.1% | 3.2 | 325.9 mm | 140.2 mm | 62.8 mm | ||
| 2640 MHz | 2.6 | 267 mm | 134 mm | 51.1 mm | ||
| 2655 MHz +0.6% | 2.6 | 267 mm | 134 mm | 51.1 mm | ||
| 2640 MHz | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2670 MHz +1.1% | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2640 MHz | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2670 MHz +1.1% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2670 MHz +1.1% | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2640 MHz | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2670 MHz +1.1% | 3.3 | 305 mm | 138 mm | 65 mm |
