Name: ASRock Radeon RX 9070 XT Taichi White OC
Brand: ASRock
SKU: RX9070XT TCW 16GO

ASRock Radeon RX 9070 XT Taichi White OC

Priser, Specifikationer og information

Grafikkort

Over 230+ GPU-modeller — Og vokser.

GPUs > AMD RX 9070 XT > ASRock Radeon RX 9070 XT Taichi White OC

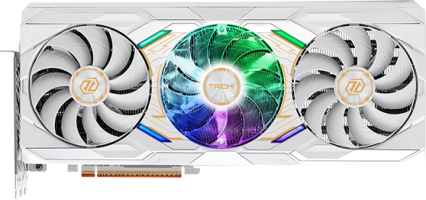

ASRock Radeon RX 9070 XT Taichi White OC - Front

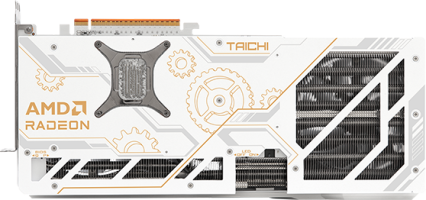

ASRock Radeon RX 9070 XT Taichi White OC - Rear

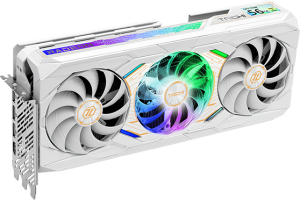

ASRock Radeon RX 9070 XT Taichi White OC - Side

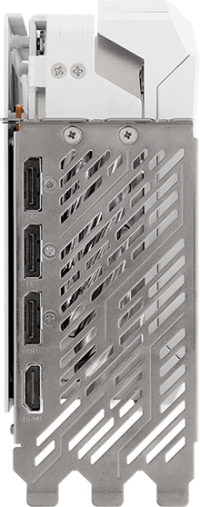

ASRock Radeon RX 9070 XT Taichi White OC - Outputs

ASRock Radeon RX 9070 XT Taichi White OC
RX9070XT TCW 16GO

Information
PlatformConsumer
ArkitekturRDNA4
GenerationRX 9000
Forrige generationRX 7000
GrænsefladePCIe 5.0 x16
Kerne
NavnNavi 48
FabrikantTSMC
Procesnode4 nm
Transistorer53900 million
Chipstørrelse357.0 mm²
Densitet151.0 /mm²
GPU-kernekonfiguration
Kerner4096
TMU256
ROP128
Hukommelse
TeknologiGDDR6
Størrelse16 GB
Bus256 bit
Infinity Cache64 MB
Båndbredde644.6 GB/s
Hastighed20.1 Gbps

Klokkehastigheder
Basisklokke1660 MHz
Spilklokke2570 MHz 2400 MHz
Boost-klokke3100 MHz 2970 MHz
Hukommelsesklokke2518 MHz
Strøm
16-pin1
TDP304 w
Anbefalet strømforsyning850 w 750 w
Skærmudgang
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensioner
Slot3
Længde330 mm
Højde146 mm
Bredde61 mm
Weight1621 g

Modeller

Grafikkort▲	Pris▲	Boost-klokke▲	Slot▲	Længde▲	Højde▲	Bredde▲
ASRock Radeon RX 9070 XT Taichi White OC RX9070XT TCW 16GO		3100 MHz +4.4%	3	330 mm	146 mm	61 mm
ASRock Radeon RX 9070 XT Taichi OC RX9070XT TC 16GO	5 939 kr. Komplett.dk	3100 MHz +4.4%	3	330 mm	140 mm	61 mm
ASRock Radeon RX 9070 XT Steel Legend RX9070XT SL 16G		2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Monster Hunter Wilds Edition RX9070XT MH 16G		2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Steel Legend Dark RX9070XT SLD 16G		2970 MHz	2.9	298 mm	131 mm	58 mm
ASRock Radeon RX 9070 XT Challenger RX9070XT CL 16G		2970 MHz	2.8	290 mm	123 mm	56 mm
Asus TUF Gaming Radeon RX 9070 XT COD BO7 Special Edition TUF-RX9070XT-O16G-COD-BO7	7 249 kr. Komplett.dk	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT White OC Edition PRIME-RX9070XT-O16G-WHITE	5 690 kr. Elgiganten.dk	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Asus TUF Gaming Radeon RX 9070 XT OC Edition TUF-RX9070XT-O16G-GAMING	6 090 kr. Elgiganten.dk	3060 MHz +3.0%	3.2	330 mm	140 mm	62.5 mm
Asus Prime Radeon RX 9070 XT OC Edition PRIME-RX9070XT-O16G	4 990 kr. Komplett.dk	3010 MHz +1.3%	2.5	312 mm	130 mm	50 mm
Gigabyte Radeon RX 9070 XT GAMING GV-R9070XTGAMING-16GD	6 460 kr. Komplett.dk	2970 MHz	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC GV-R9070XTGAMING OC-16GD	4 799 kr. Elgiganten.dk	3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte Radeon RX 9070 XT GAMING OC ICE GV-R907XGAMINGOCICE-16GD		3060 MHz +3.0%	2.8	288 mm	132 mm	56 mm
Gigabyte AORUS Radeon RX 9070 XT ELITE GV-R9070XTAORUS E-16GD	5 299 kr. Elgiganten.dk	3100 MHz +4.4%	3	339 mm	136 mm	59 mm
PowerColor Hellhound AMD Radeon RX 9070 XT Reva Edition RX9070XT 16G-L/OC/REVA	6 690 kr. Elgiganten.dk	3010 MHz +1.3%	2.9	332 mm	122 mm	57 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Backplate Special Edition RX9070XT 16G-E/OC/BP		3060 MHz +3.0%	3	340 mm	132 mm	69 mm
PowerColor Red Devil Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-E/OC/WHITE	7 189 kr. Elgiganten.dk	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT Limited Edition RX9070XT 16G-E/OC/LIMITED		3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Red Devil AMD Radeon RX 9070 XT RX9070XT 16G-E/OC	6 390 kr. Elgiganten.dk	3060 MHz +3.0%	3.5	340 mm	132 mm	69 mm
PowerColor Hellhound Spectral White AMD Radeon RX 9070 XT RX9070XT 16G-L/OC/WHITE	6 548 kr. Elgiganten.dk	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Hellhound AMD Radeon RX 9070 XT RX9070XT 16G-L/OC	5 690 kr. Elgiganten.dk	3010 MHz +1.3%	2.5	327 mm	128 mm	49 mm
PowerColor Reaper AMD Radeon RX 9070 XT RX9070XT 16G-A	4 899 kr. Elgiganten.dk	2970 MHz	2.1	289 mm	111 mm	41 mm
Sapphire PURE AMD Radeon RX 9070 XT OC 11348-02-20G	6 164 kr. Elgiganten.dk	3010 MHz +1.3%	3.1	320 mm	120.3 mm	61.6 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC Crimson Desert Edition 11348-10-20G	6 582 kr. Elgiganten.dk	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	65.7 mm
Sapphire NITRO+ AMD Radeon RX 9070 XT OC 11348-01-20G	6 373 kr. Elgiganten.dk	3060 MHz +3.0%	3.3	330.8 mm	128.5 mm	66 mm
Sapphire PULSE AMD Radeon RX 9070 XT 11348-03-20G	5 890 kr. Elgiganten.dk	2970 MHz	3.1	320 mm	120.3 mm	61.6 mm
XFX Mercury AMD Radeon RX 9070XT OC White Magnetic Air Edition with RGB RX-97TMARGW9	6 731 kr. Komplett.dk	3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Magnetic Air Edition with RGB RX-97TMARGBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Gaming Edition with RGB RX-97TRGBBB9		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC White Gaming Edition with RGB RX-97TRGBBW9		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT OC Gaming Edition with RGB RX-97TRGBBBA		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT Gaming Edition RX-97TMERCB9		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT Gaming Edition RX-97TMERCBA		2970 MHz	7.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070 XT White Gaming Edition RX-97TMERCWA		2970 MHz	3.6	360 mm	155 mm	72 mm
XFX Mercury AMD Radeon RX 9070XT OC Magnetic Air Edition with RGB RX-97TMARGB9		3100 MHz +4.4%	3.6	360 mm	155 mm	72 mm
XFX Quicksilver AMD Radeon RX 9070XT Magnetic Air Edition RX-97TMAQKB9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Magnetic Air Edition RX-97TMAQKW9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT Gaming Edition RX-97TQICKB9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070XT White Gaming Edition RX-97TQICKW9		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Quicksilver AMD Radeon RX 9070 XT Gaming Edition RX-97TQICKBA		2970 MHz	3.4	350 mm	140 mm	67 mm
XFX Swift AMD Radeon RX 9070XT Triple Fan Gaming Edition RX-97TSWF3B9	5 999 kr. Komplett.dk	2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070XT White Triple Fan Gaming Edition RX-97TSWF3W9		2970 MHz	3.3	325 mm	150 mm	65 mm
XFX Swift AMD Radeon RX 9070 XT Triple Fan Gaming Edition RX-97TSWF3BA		2970 MHz	3.3	325 mm	150 mm	65 mm

Information
Platform	Consumer
Arkitektur	RDNA4
Generation	RX 9000
Forrige generation	RX 7000
Grænseflade	PCIe 5.0 x16

Kerne
Navn	Navi 48
Fabrikant	TSMC
Procesnode	4 nm
Transistorer	53900 million
Chipstørrelse	357.0 mm²
Densitet	151.0 /mm²

Hukommelse
Teknologi	GDDR6
Størrelse	16 GB
Bus	256 bit
Infinity Cache	64 MB
Båndbredde	644.6 GB/s
Hastighed	20.1 Gbps

Klokkehastigheder
Basisklokke	1660 MHz
Spilklokke	2570 MHz 2400 MHz
Boost-klokke	3100 MHz 2970 MHz
Hukommelsesklokke	2518 MHz

GPU-kernekonfiguration
Kerner	4096
TMU	256
ROP	128

Strøm
16-pin	1
TDP	304 w
Anbefalet strømforsyning	850 w 750 w

Skærmudgang
DisplayPort	3 2.1a
HDMI	1 2.1b
HDCP	2.3

Dimensioner
Slot	3
Længde	330 mm
Højde	146 mm
Bredde	61 mm
Weight	1621 g
