Grafikkort
| Information | |
|---|---|
| Platform | Consumer |
| Arkitektur | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Forrige generation | GeForce RTX 30 |
| Næste generation | GeForce RTX 50 |
| Grænseflade | PCIe 4.0 x16 |
| Maks temperatur | 90 C |
| Kerne | |
|---|---|
| Navn | AD106 |
| Fabrikant | TSMC |
| Procesnode | 5 nm |
| Transistorer | 22900 million |
| Chipstørrelse | 188.0 mm² |
| Densitet | 121.8 /mm² |
| GPU-kernekonfiguration | |
|---|---|
| Kerner | 4352 |
| TMU | 136 |
| ROP | 48 |
| SM'er | 34 |
| Tensor-kerner | 136 |
| RT-kerner | 136 |
| Hukommelse | |
|---|---|
| Teknologi | GDDR6 |
| Størrelse | 8 GB |
| Bus | 128 bit |
| Båndbredde | 288.0 GB/s |
| Hastighed | 18.0 Gbps |
| Klokkehastigheder | |
|---|---|
| Basisklokke | 2310 MHz |
| Boost-klokke | 2565 MHz 2535 MHz |
| Hukommelsesklokke | 2250 MHz |
| Strøm | |
|---|---|
| 8-pin | 1 |
| TDP | 160 w |
| Anbefalet strømforsyning | 650 w 550 w |

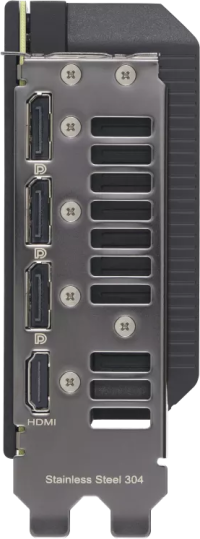

| Skærmudgang | |
|---|---|
| DisplayPort | 3 1.4a |
| HDMI | 1 2.1a |
| HDCP | 2.3 |
| Dimensioner | |
|---|---|
| Slot | 2.5 |
| Længde | 269 mm |
| Højde | 120 mm |
| Bredde | 50 mm |
| Grafikkort▲ | Pris▲ | Boost-klokke▲ | Slot▲ | Længde▲ | Højde▲ | Bredde▲ |
|---|---|---|---|---|---|---|
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.1 | 199 mm | 120 mm | 42 mm | ||
| 2565 MHz +1.2% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2715 MHz +7.1% | 3.1 | 311.4 mm | 133.5 mm | 61.9 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 3.2 | 300 mm | 139 mm | 62.4 mm | ||
| 2655 MHz +4.7% | 3.2 | 300 mm | 139 mm | 62.4 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2 | 202 mm | 120 mm | 40.1 mm | ||
| 2595 MHz +2.4% | 2 | 202 mm | 120 mm | 40.1 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2565 MHz +1.2% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2610 MHz +3.0% | 2.5 | 269 mm | 120 mm | 50 mm | ||
| 2565 MHz +1.2% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2595 MHz +2.4% | 2.5 | 227.2 mm | 123.2 mm | 49.6 mm | ||
| 2580 MHz +1.8% | 2.2 | 308 mm | 120 mm | 43 mm | ||
| 2535 MHz | 2 |
